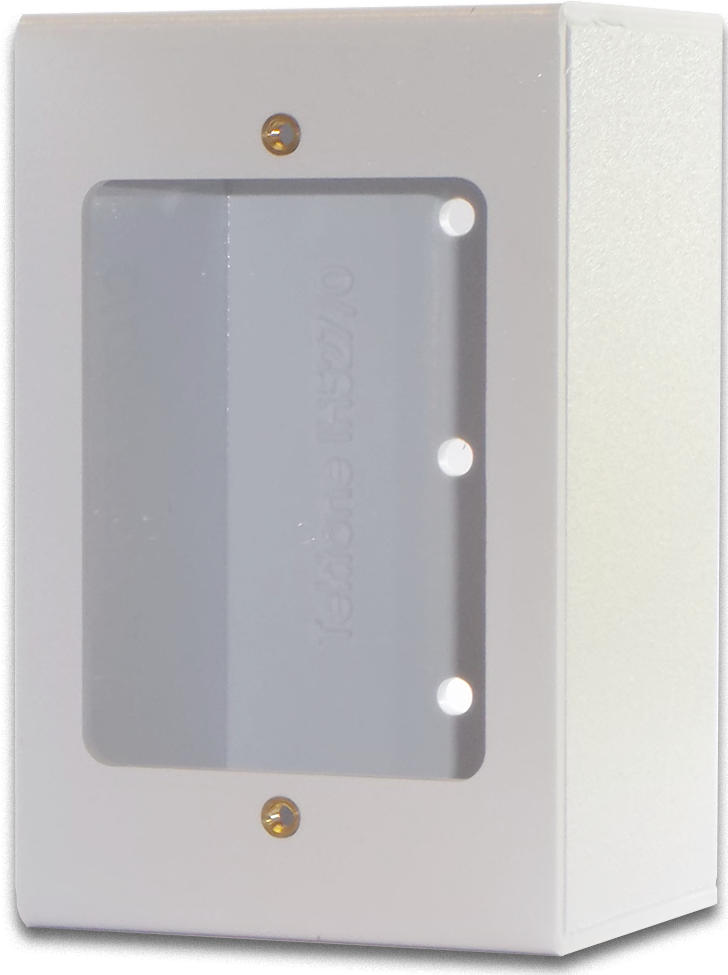

The IH527 Surface-Mount Single-Gang Plastic Back Box is for use with the Tek-CARE®500 Wireless Nurse Call System. The back box is used to surface mount the SF527UL/SF337C Waterproof Emergency Switch assembly and the SF530UL Room Station.
The IH527 is constructed of durable ABS plastic to coordinate with the emergency switches, and does not interfere with wireless transmission signals. The back box includes mounting holes on the back for attachment to the wall. The SF527UL Wireless Support Module is placed inside the IH527, and then the SF337C Emergency Switch or the SF530UL Room Station is attached to the mounting holes on the front of the IH527.
- Material: ABS plastic
- Height: 4.5" (115 mm)
- Width: 2.85" (72 mm)
- Depth: 2.56" (65 mm)
- Plastic: 3 mm thick
One (1) year manufacturer's warranty plus an exclusive one (1) year BuyTekTone.com extended manufacturer's warranty.*
